Nuts
DIN 6923 Flange Nuts
DIN 6923 flange nuts combine a hex nut with an integrated flange to distribute load across a wider bearing surface. SENOTECH supplies serrated and non-serrated hex flange nuts in carbon steel and stainless steel, with zinc plated, black and custom finishes for automotive, machinery and industrial fastening.
Specifications
- Standard
- DIN 6923
- Product Name
- Flange Nuts
- Product Type
- Hex Flange Nut / Serrated Flange Nut
- Material
- Carbon Steel, Stainless Steel
- Surface Finish
- Zinc Plated, Yellow Zinc, Black, Plain, Customized
- Application
- Automotive, Machinery, Industrial Equipment, Construction
- Customization
- Available

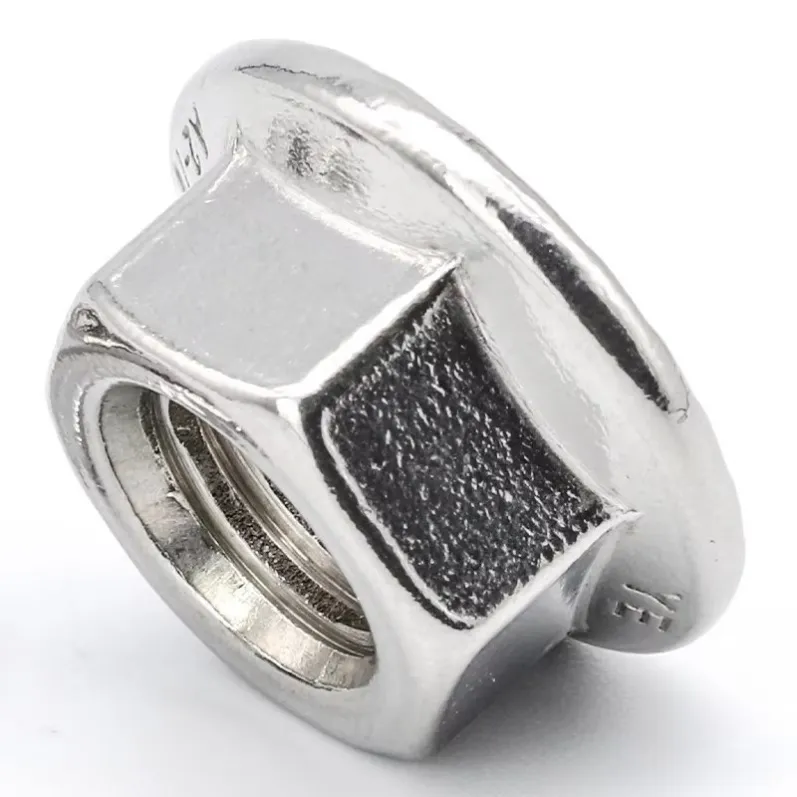

Designed with an integrated flange beneath the hexagonal body, these nuts provide a larger bearing surface than conventional hex nuts. The flange helps distribute clamping pressure over the connected component and can reduce the need for a separate washer in suitable assemblies.
SENOTECH supplies DIN 6923 flange nuts, hex flange nuts and serrated flange nuts for automotive components, machinery, industrial equipment, steel fabrication and general fastening applications.
DIN 6923 specifies flange nut dimensions for metric coarse and fine threads, with standardized sizes from M5 to M20.

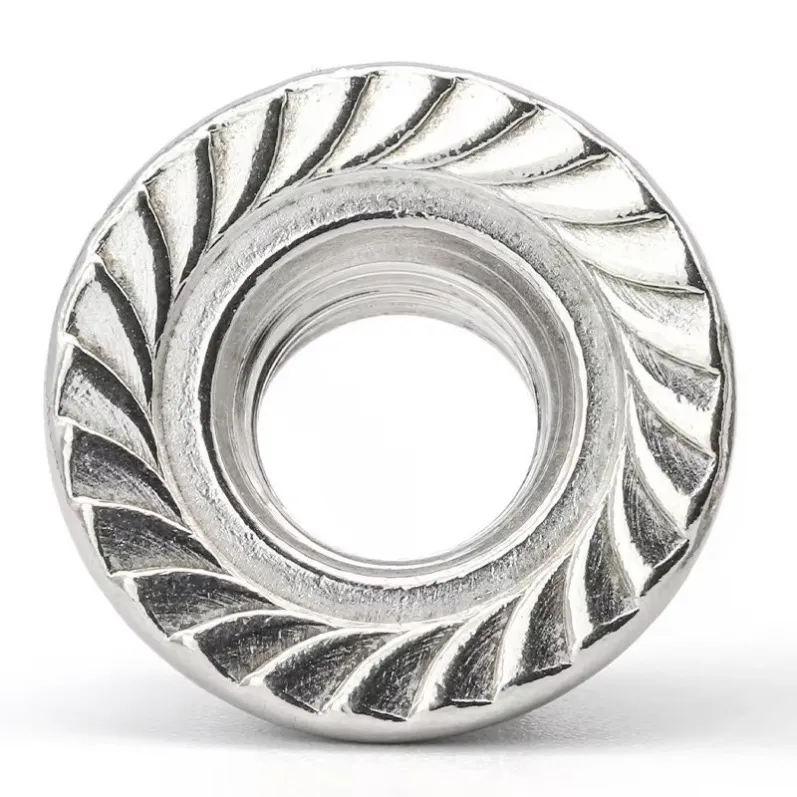

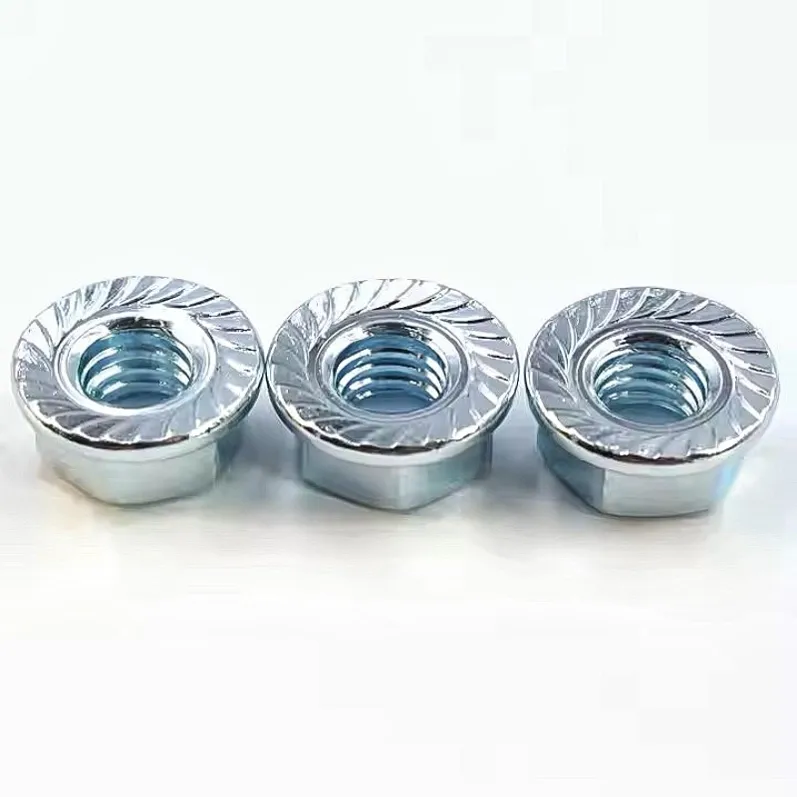

Serrated Flange Nuts
Serrated versions feature teeth on the underside of the flange. These serrations increase resistance against rotation after tightening and are commonly selected for machinery, automotive and equipment assemblies subject to vibration.
For applications where the contact surface must remain smooth, non-serrated flange nuts can also be supplied according to customer requirements.

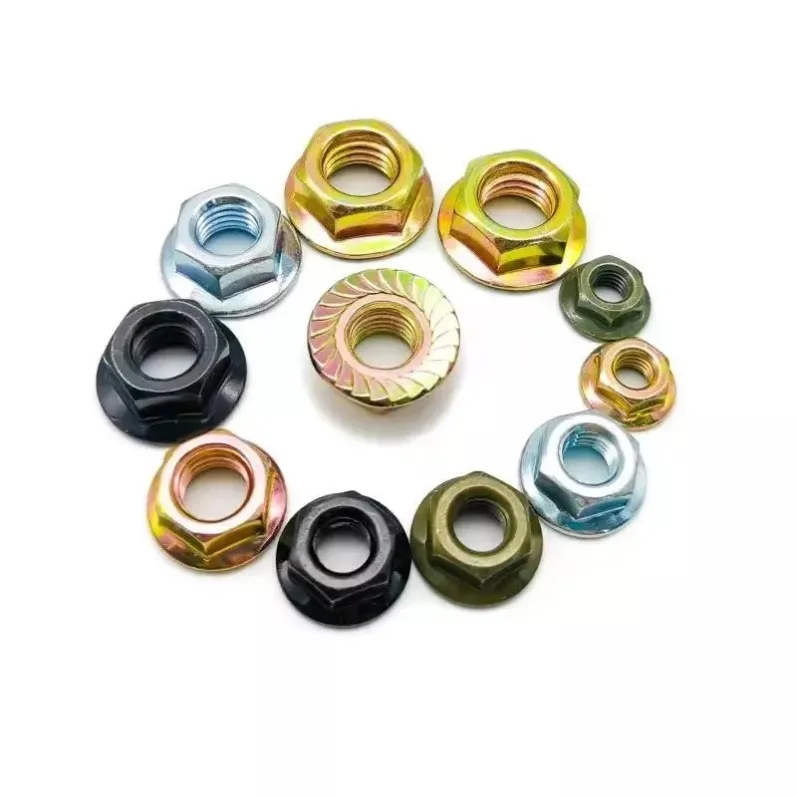

Materials & Finishes
Available options include:
- Carbon Steel
- Stainless Steel 304 / A2
- Stainless Steel 316 / A4
- Zinc Plated
- Yellow Zinc Plated
- Black Finish
- Plain Stainless Steel
- Customized Surface Treatment
Strength grades and coatings can be selected according to the mating bolt, operating environment and project specification.
Applications
DIN 6923 hex flange nuts are commonly used in:
- Automotive components
- Machinery manufacturing
- Industrial equipment
- Steel structures
- Agricultural machinery
- Construction equipment
- General mechanical assemblies
They can also be supplied together with DIN 6921 flange bolts, providing buyers with a matched flange bolt and nut fastening solution.
OEM & Bulk Supply
SENOTECH supports standard and customized flange nut requirements for fastener distributors, OEM manufacturers and industrial project buyers.
Different sizes, materials, strength classes, surface finishes and packaging can be supplied according to purchasing specifications or drawings.
